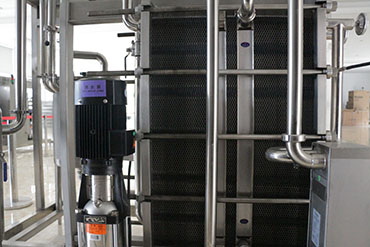

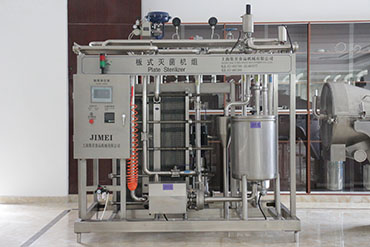

Juice pulp milk pasteurizer(plate type)
It fits to heat, sterilize, keep warm, and cool the heat sensitive liquid such as the fresh milk, beverage and juice, wine. This machine is of high recycle, energy saving, and reducing cost, compact constructure, simple operation, and convenient maintain.

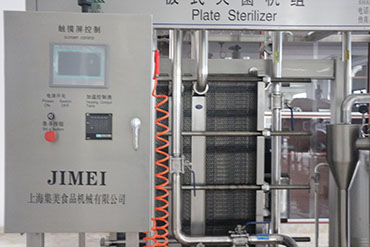

Controlling methods: semi-automatically, fully automatically(PLC control, touching view)
Main fittings: material pump, balance tank hot water system, Temp-erature control and tape recorder, and electric, controlling system
Product capacity: 0.5-20t/h
Sterilizing temperature: -95℃ Warm
keeping time:15-30s.
Technical Parameter
| Model | BS-BS-1 | BS-BS-2 | BS-BS-3 | BS-BS-4 | BS-BS-5 | BS-BS-10 |
| Product capacity T/h | 1 | 2 | 3 | 4 | 5 | 10 |
| Heeat exchanging area (m2) | 12 | 15 | 20 | 25 | 28 | 52 |
| Material inlet temperature(℃) | 5 | 5 | 5 | 5 | 5 | 5 |
| Material outlet temperature (℃) | 5 | 5 | 5 | 5 | 5 | 5 |
| Sterilizing temperature(℃) | 85-95 | 85-95 | 85-95 | 85-95 | 85-95 | 85-95 |
| Warmkeeping timeS | 25 | 25 | 25 | 25 | 25 | 25 |
| Lce water temperature(℃) | 1 | 1 | 1 | 1 | 1 | 1 |
| Lce water costT/h | 20.4 | 20.4 | 20.4 | 20.4 | 20.4 | 20.1 |
| Jiont sizeMm | φ38 | φ38 | φ38 | φ51 | φ51 | φ68 |
| Size mm |
1500×1500 ×2000 |
2200×2000 ×2400 |
2200×2000 ×2400 |
2400×2000 ×2400 |
2400×2200 ×2500 |
2500×2200 ×2500 |
| Weight Kg | 928 | 985 | 1050 | 1200 | 1200 | 1800 |
