Juice Concentrate Production Line
  • Description
  • Process

Description:

The juice concentration line include washing ,crushing,squeeze extractor, enzymolysis, evaporator,sterilizer, aspetic filling and etc. We manufacture various fruit Production equipments with different functions like crusher,squeeze extractor are simple construction,easy operation, ,High production efficiency have positioned us as the Chinese market leader in the worldwide.

Characteristics and advantages:

The Production capacity range from 50 tons/day to 1000 tons/day.
The line can deal with different characteristics of fruits.
Automatic disinfection liquid concentration control system, effectively guarantee the sterilization effect and control the disinfection residue
Efficient crusher improved the high output percentage of apples and pears
Using efficient belt juice extractor to improve the juice efficiency and the output percentage
The production process fully automatic PLC control to reduce the labor intensity and Improve production efficiency

Low-temperature vacuum evaporation Greatly reduce the flavor substances and nutrient losses
A variety of energy recovery measures , increased the energy utilization and greatly reduce production cost
Tubular UHT sterilizer and Aseptic filling machine, Isolated from the pollution of bacteria,ensure the safety of the food and extend the shelf life of the product
A complete set of production with self CIP system reduce the labor intensity and ensure the high level sanitation.

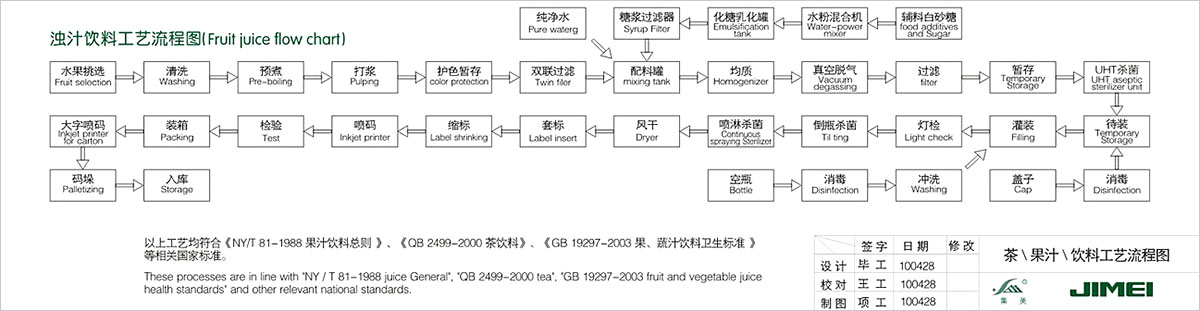

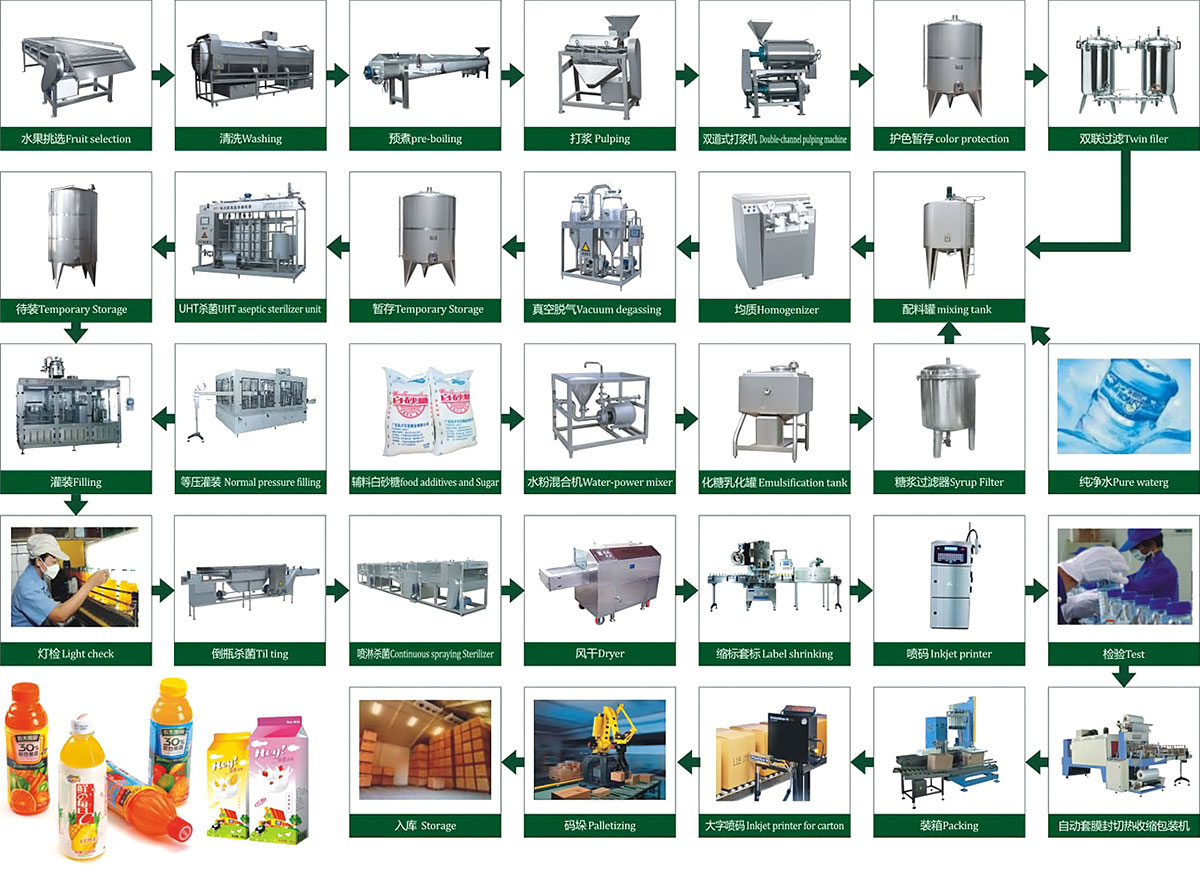

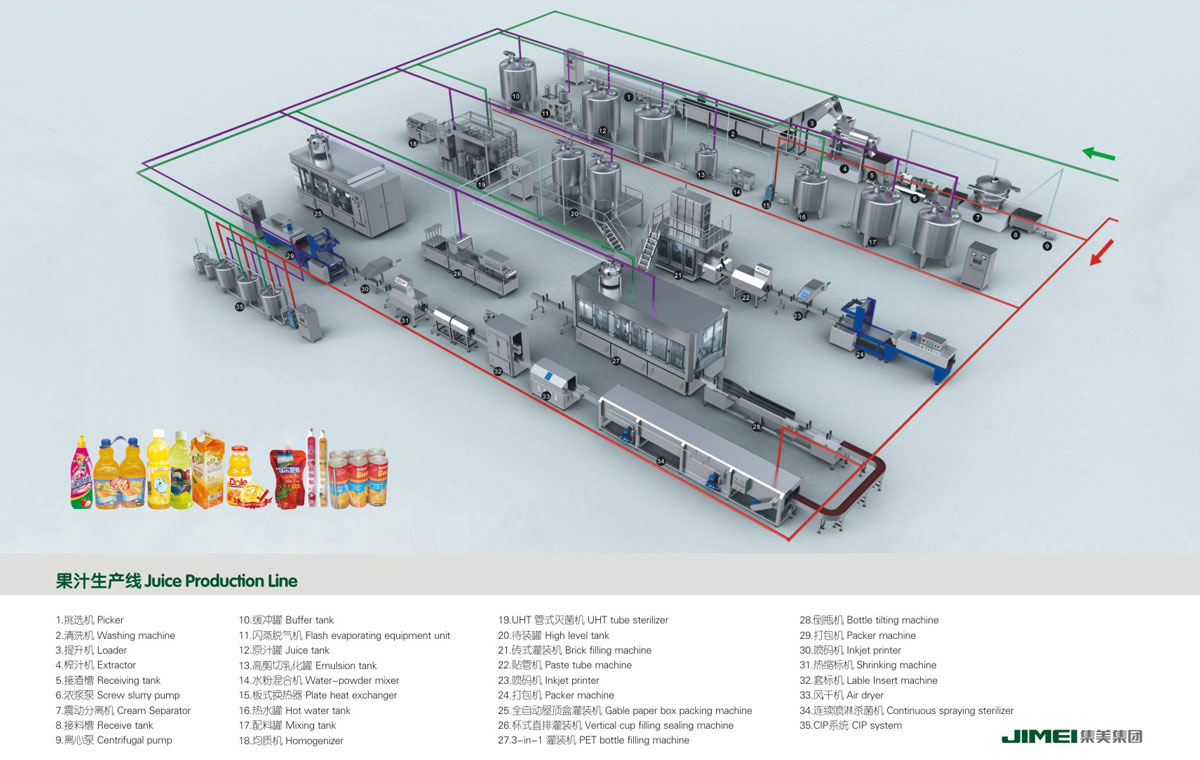

The whole line including:

1.Water Treatment section
2. Fresh Fruit Production Section
3. Preparation Section
4. Three-effect Evaporation Section
5. Sterilization Section
6.Filling & Packaging Section
7.CIP Cleaning Section
8.Compressor
9. Steam boiler
10. Water chiller
11. Installation materials

Technical parameters

Raw material Various fresh fruits
Product Juice Concentrate Juice beverage
Production capacity 50tons/Dto1000tons/D
Output percentage 50-75%
Fruitcon sistance 10-20Brix
Product consistance  60~72Brix
Products package Aseptic bag, brick shape carton, gabletop carton, PET bottle, etc
